SN-MT Patchcord

The SN-MT patchcord provides quick connection specifically for multifiber cable, up to 16 fibers. The SN®-MT is a next generation multifiber connector available in 8 and 16 fibers in one row. It allows 2.7x increase density compared to MTP/MPO-16 fibers. The new multifiber SN®-MT connector is the same footprint as duplex SN connector. Available SN-MT trunk cables or fan-out from SN®-MT to single fibers connectors: FC, LC, SC, etc.

SKU: SN-MT-patchcord Categories: , ,

Description

  • SN-MT Patchords – high density up to 16 fibers

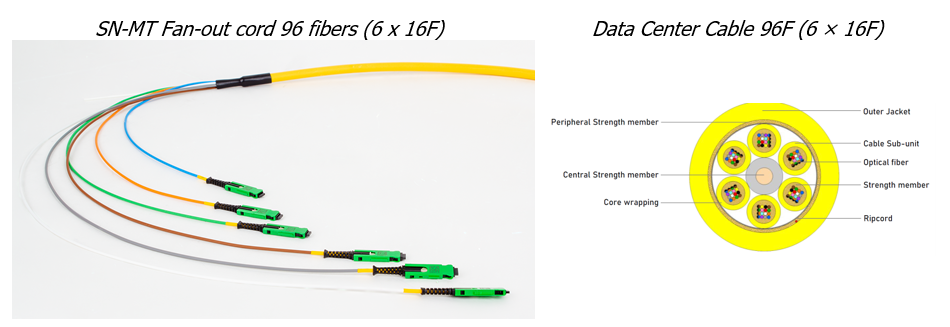

  • Fan-out cord with single fiber connectors
  • Pluggable transceiver interface – 4x SN-MT fit in QSFP footprint
  • Direct coupling to emerging 16 fiber parallel optic links (8 Tx / 8 Rx, e.g. 400G QSFP-DD, OSFP)
  • Inside box mid-board interconnect

Specification

Specifications of connector1: Single mode, 8/16 fibers, low loss
Typical Insertion Loss (dB) 0.15
Max Insertion Loss (dB) 0.35
Typical Return Loss (dB) ≥60
Operating Temperature (°C) – 40 to +75
Durability SM <0.3 dB typical change, 50 matings

Note: 1) Parameters listed are target specifications.

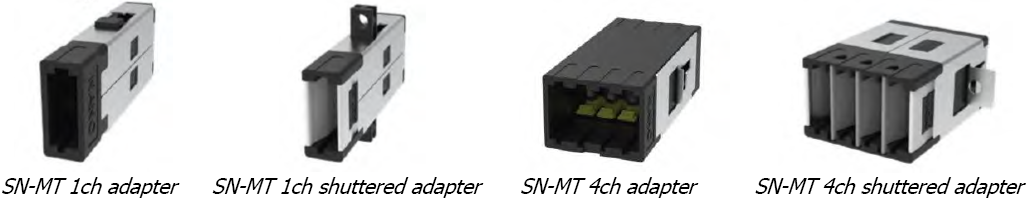

Types of SN-MT adapter:

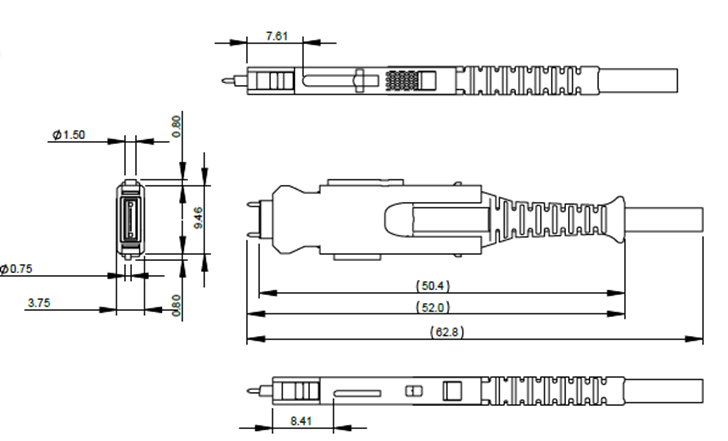

Dimensions of SN®-MT connector:

Ordering Information

Download

SN-MT_patchcord_datasheet
