TP-ECOM-USB-1W

TrigoPi USB to 1-Wire Interface

COMMING SOON

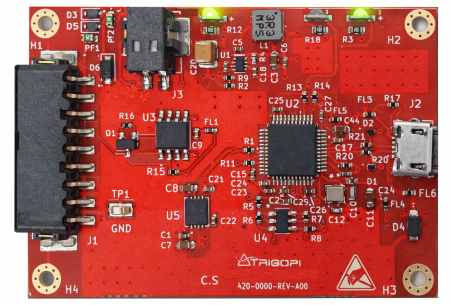

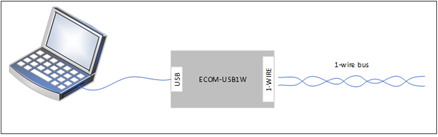

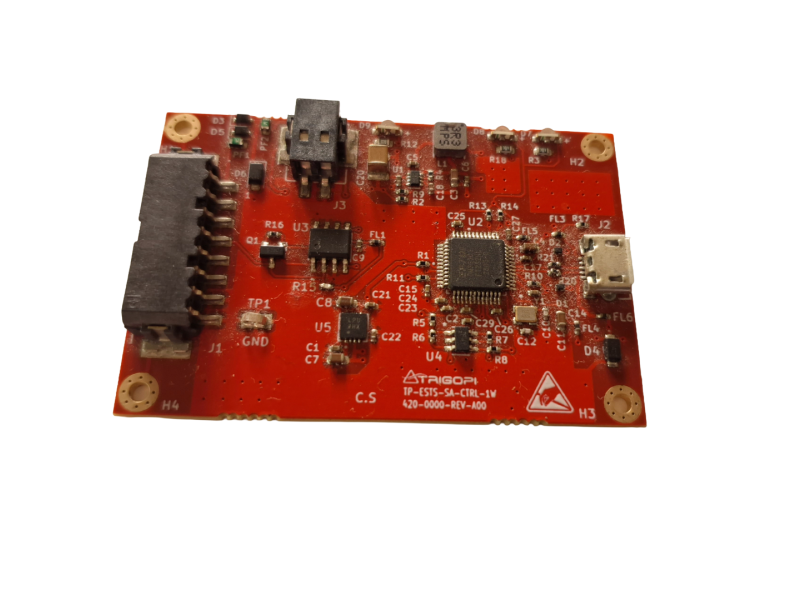

The TP-ECOM-USB-1W is a professional-grade electronic board USB to 1-wire adapter. This compact board enables a host device such as PC to control 1-wire interface.
It can be used as a general 1-wire master on a bus and manipulate all 1-wire devices such as temperature sensors, I/O devices, and more.
The TP-ECOM-USB-1W is recommended to be used with TP-ECOM-USB-1W-SDK product which encapsulated basic 1-wire functionalities (L0) as well as advanced feature functionalities (L1) for applications offered by TrigoPi ESTS products (e.g. TP-ESTS-TE-GN-1W, TP-ESTS-HU-GN-1W etc.)

SKU: TP-ECOM-USB-1W Categories: , ,

Description

  • USB to 1-Wire adapter
  • Interfaces: Auxiliary voltage, USB host interface, 1-wire bus interface
  • LED indicators: +12V, +3.3V, software controlled
  • Normal input voltage via the USB power
  • Optional auxiliary voltage input for 1-wire network robustness
    • Over voltage protection
    • Reverse polarity voltage protection
  • Operating temperature range -40°C to +85°C
  • Based on:
    • USB to I2C FTDI FT232
    • 1-Wire bridge Maxim DS2482
  •  Software:
    • Test panel application for basic interface control
    • SDK package and documentation for technical (L0) and development level (L1)
    • Optional for customized application (please contact us)
  • Longevity of 10 years

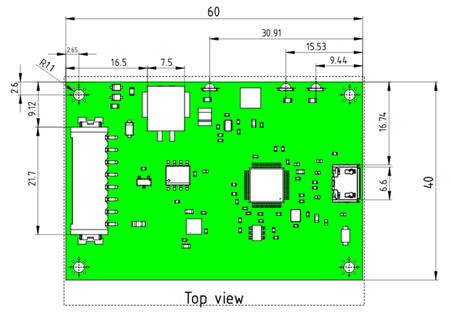

Mounting and dimension



  • The module dimensions are 60mm x 40mm
  • Mounting using 4 x M.2 screw holes

Optional accessories

  • SDK: TP-ECOM-USB-1W-SDK
  • Evaluation board
  • Plastic case

Test panel
