SCF Push Cable

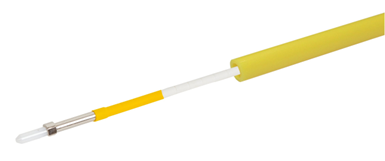

The SCF Push Cable is a concept in pre-terminated optical drop cables for use in connecting the subscriber to the network access terminal. The cable is preterminated with FTTH SC/APC “plugging in” connector, designed for 4 mm indoor tube diameter. The connector is delivered disassembled, the cable is terminated with a pre-polished ferrule. After pushing the cable with the ferrule into the microtube, the connector is then assembled into its final form on the end user site. Finally it can be connected to a CPE device.

SKU: SCF-patchcord Categories: , ,

Description

  • Proven SC connectors technology
  • Factory polished connector
  • Easy final connectors assembly
  • Fiber termination at user site

Specification

Insertion loss (IL)

(IEC 61300-3-4)

 SM Ultra PC

Grade B

 SM Angle PC

Grade C

 SM Angle PC

Grade B
0.12 dB typ

0.25 dB 97%

 0.25  dB typ

0.50 dB 97%

 0.15  dB typ

0.25 dB 97%
Return loss (RL)

(IEC 61300-3-6)

 >50 dB >60 dB >65 dB
Strain relief 90 N
Operating temperature -40°C to +80°C
Durability min 1000 cycles
Assembly procedure glue and polish
Connection physical contact
Lock mechanism snap-on
Standards EN 50377-4
Ferrule material full ceramic zirconia
Connector material thermoplastic
Adapter material polymer composite, zirconia sleeve
Fiber type G.657A1

Note: 1) other on request

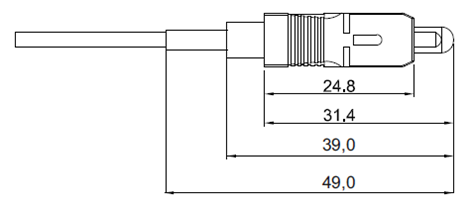

Dimensions:

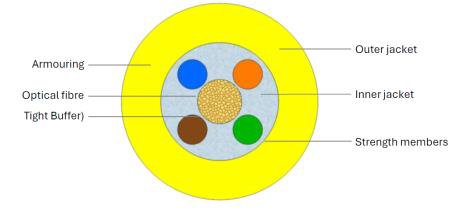

Cable design
Cable PN OPK-U-DRP-1 / PD2 OPK-O-CTFB / AB
Document 0205_OPK-U-DRP-1(1×0.9)A9TH.pdf D054_Aramid Yarn Reinforced Air Blown Unit.pdf

Application

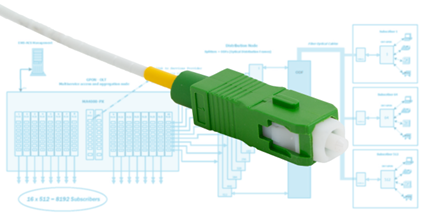

Installation of cable with pre-terminated ferrule into tube Final connectors assembling and CPE connection
  • FTTX
  • CATV
  • Aerial ADSS applications
  • Air-blown technology

Ordering Information

Download

SCF_Push_cable_datasheet
